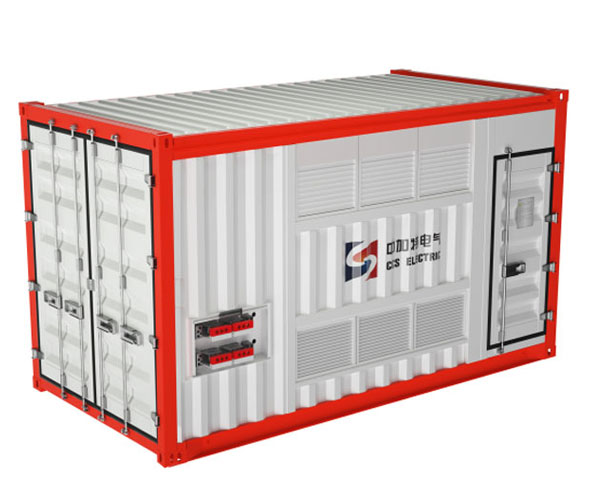

Power Transformation High IP Converter

Fracturing operation is one of the important means to improve oil and gas energy recovery efficiency, which is widely used in increasing the output of oil-gas field and augmenting injection of water-injection well. Obviously, fracturing has become the main way to transform low permeability reservoirs, develop deep reservoirs, shale gas, and shale oil.



Power Transformation High IP Converter is a kind of VFD frequency converter. Diesel fracturing vehicles running for a long time will consume a large amount of fuel, produce harmful gases, and face problems such as high cost, environmental damage, loud noise, centralized equipment placement, and fire risk.

Specifications of the Power Transformation Motor Frequency Converter

BDBP-3350/10/3.3

Model

BDBP-3350/10/3.3

Transformer capacity

4000kVA

Power rating

3500kW

Output Current

720A

Input frequency

50Hz

Input Voltage

10kV+10%

Input PF

0.95

Efficiency

>0.96

Output Frequency

0~120Hz

Frequency resolution

0.01Hz

Overload

120% 1min



BP-2×3350/10/3.3

Model

BDBP-2×3350/10/3.3

Power rating

2×3350kW

Output Current

2×650A

Input frequency

50Hz

Input Voltage

10kV+10%

Input PF

0.95

Efficiency

>0.96

Output Frequency

0~50Hz/60Hz

Frequency resolution

0.01Hz

Overload

120% 1min


Features of the Power Transformation High IP Converter

  • High protection container design;

  • Modular design, good for mounting and maintenance;

  • Multiple combination options among 1,2,3, independent variable frequency outputs of different power;

  • Built-in lightning protection and surge protection;

  • Small size with high power density.

Applications of the Power Transformation Frequency Converter 50Hz to 60Hz

The mobile container-type converters for fracturing trucks (spread) developed by CCS, with the high power and multi-loop independent output and the technology integration of frequency control, heat dissipation, electrical and environmental protection, are widely favored by the oil industry.
