High Ingress Protection VFD Motor
  • ingress protection of motor
  • ingress protection of motor
  • ingress protection of motor

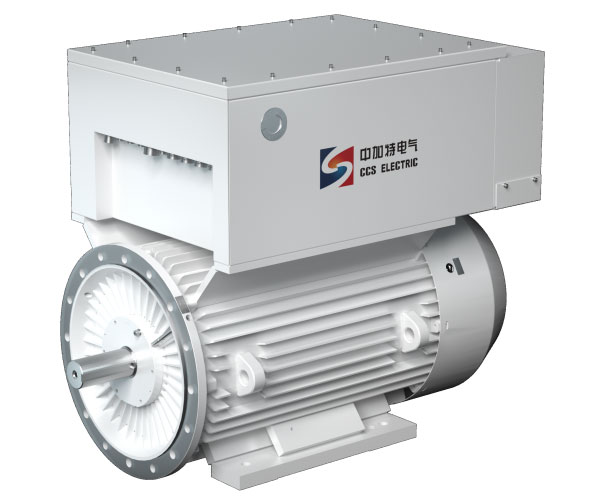

CCS Motor High Ingress Protection VFD Motor

High ingress protection of motor is mainly used in excavators in the field of construction machinery, port bucket wheel stacker-reclaimer, and electric drive fracturing complete sets of equipment matched with fracturing skids and sand mixers in oil well sites. Our power control equipments company's series of products have AC and DC, of which AC power supply products adopt AC power supply and adopt integrated design, with small volume, compact structure, saving installation space, high efficiency and energy saving, and are mainly used in construction machinery, ports and other fields; DC power supply products adopt DC power supply, inverter part, and motor part are combined into a whole, with high protection level. This kind of VFD compatible motor is mainly used in oil well sites and other fields.

Specifications of the High Ingress Protection VFD Motor

Model

Power(kW)

Voltage(V)

Current(A)

Speed(r/min)

Insulation

Ingress

protection

YKVFT-450-6

400

600

450

580

H

IP44

YKVFT-450-6

500

600

565

690

H

IP44

YKVFT-630-6

1200

600

1337

580

H

IP44

YVFT-500-6

1500

600

1750

750

H

IP44

YKVFT-355-4

315

600

354

2200

H

IP54

YKVFT-315M-4

110

380

200

1485

H

IP44

YVFT-315M-4

132

380

260

1490

H

IP44

YKVFT-315L2-4

200

380

355

1490

H

IP54

YKVFT-315L3-4

280

380

500

1480

H

IP54

YKVFT-355L-4

315

380

600

1800

H

IP54

YKVFT-450-6

400

450

807

1000

H

IP44



Features of the High Ingress Protection VFD Motor

  • Optional AC or DC power supply

  • Compact structure for space saving

  • High VFD motor efficiency and energy saving

  • High protection

Application of the High Ingress Protection VFD in Motor

Applications on electric frac spread for oil &gas and contruction equipment such as excavators,bucket wheel stacker.
