PM Integrated VFD Motor
  • PM Integrated VFD for Synchronous Motor
  • PM Integrated VFD for Synchronous Motor
  • PM Integrated VFD for Synchronous Motor

CCS Motor VFD for Synchronous Motor Frequency Converter

Intelligent permanent magnet direct drive system is a comprehensive solution for equipment drive and control technology. VFD for synchronous motor takes permanent magnet direct drive technology as the core and adopts special frequency converter, permanent magnet synchronous frequency conversion motor, and water cooler to replace traditional mechanical drive devices such as asynchronous motor, reducer and hydraulic coupler. At present, VFD synchronous motor is widely used in mines, coal, ports, electric power, building materials, chemical industry, and other fields. Contact us for more information on vfd compatible motor!

Specifications of the PM Integrated VFD for Synchronous Motor

Voltage range

380V/400V/600V/660V/3300V/4160V/6000V/6600V/10000V

Frequency

50Hz/60HZ

Voltage fluctuation range at grid

-15%-10%

Frequency fluctuation at grid

±0.2Hz

Speed range

60rpm,75rpm,90rmp and so on

Output frequency

0-50Hz/60Hz

Power rating

45kW-2000kW

VFD principle

Voltage source inverter

Motor type

Synchronous motor

Control method

V/F or DTC without sensor

Starting torque

2 times

Frequency resolution

0.01Hz

Ingress protection

IP54 pr IP55

Installation

IMB3 or IMB5

Communication

CAN、RS485、Profinet、Ethernet IP etc

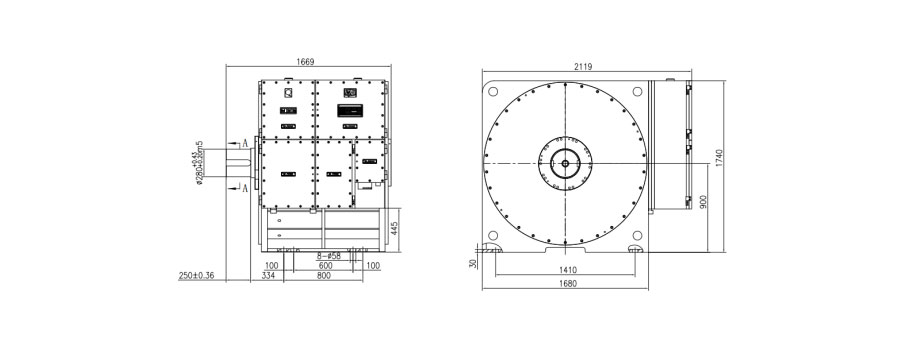

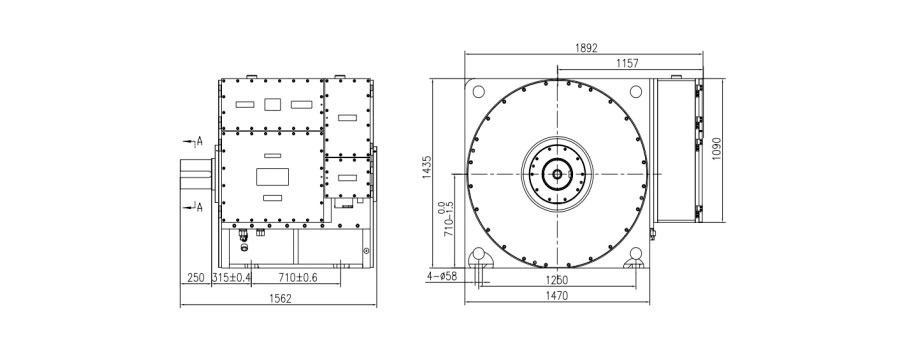

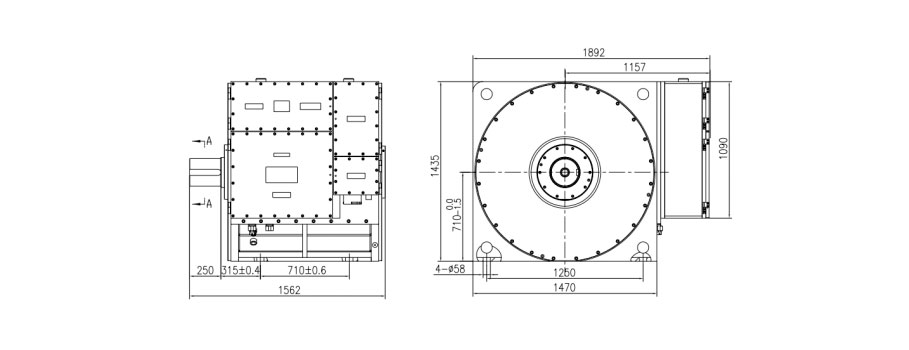

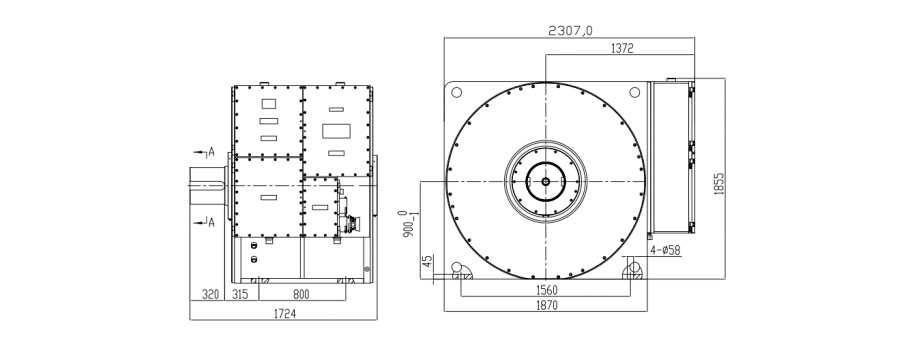

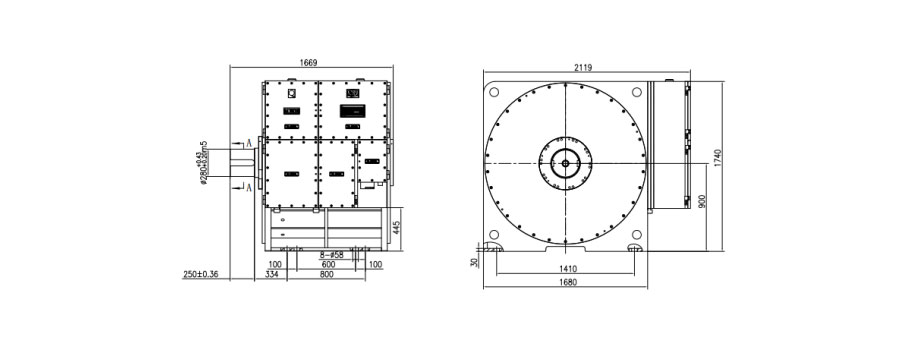

Synchronous Motor VFD Schematic

Model                                 Power(kW)     Speed(rpm)     Torque(Nm)          weight(kg)

STJVFT55-2-**x**(1140)       55                       75                         7003                        2100

TJVFT-250/40YC(1140)           250                       90                        26530                         8000

TJVFT-315/60YC(1140)           315                     60/75               50137/40110                  10900

TJVFT-400/60YC(1140)           400                     60/75               63666/50933                  13500

TJVFT-450/60YC(1140)           450                     60/75               71625/57300                  13500

TJVFT-500/60YC(1140)           500                     60/75               79583/63666                  14000

TJVFT-560/60YC(1140)           560                     60/75               89133/71306                  14000

TJVFT-800/60YC(1140)           800                     60/75            127333/101866                 16000

TYJVFT-900L/80YC(10)          1000                       60                        159167                     21000


TJVFT-250/40YC(1140)

synchronous motor vfd

TJVFT-315/60YC(1140)

vfd synchronous motor

TJVFT-400/60YC(1140)

synchronous motor frequency converter

TJVFT-450/60YC(1140)

integrated vfd

TJVFT-500/60YC(1140)

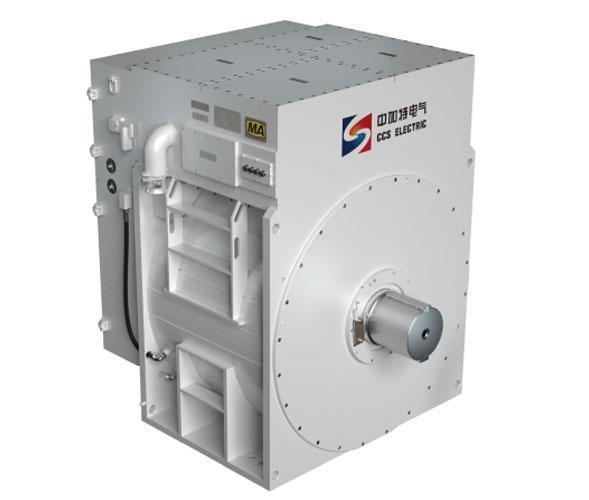

Flame Proof VFD Synchronous Motor

TJVFT-560/60YC(1140)

Flame Proof VFD Synchronous Motor

TJVFT-800/60YC(1140)

Flame Proof VFD Synchronous Motor

Features of VFD for Synchronous Motor

The VFD synchronous motor has the characteristics of high VFD motor efficiency, energy-saving, large starting torque, excellent performance, small maintenance, and intelligent drive.

High efficiency and energy saving

  • The intermediate transmission link of the vfd synchronous motor is omitted, and the load is directly driven.

  • No rotor excitation, no rotor copper loss, high rated efficiency.

  • The light load area has excellent efficiency and high operation efficiency of the motor with integrated VFD.

Even VFD synchronous motor is at 0 speed, there is a relatively large torque

  • Heavy-duty starting: starting torque up to 2 times rated torque.

  • Smooth start to reduce the mechanical impact on load equipment.

  • Automatic step-less speed regulation according to load, reducing power consumption and prolonging the service life of load equipment.

  • Motor with integrated VFD has a Small starting current, reducing the impact on the power grid and reducing power grid failures.

  • VFD for synchronous motor has less footprint.

  • With integrated VFD motor technology, you can install the equipment in the narrow space as shown in our drawing.


What is the difference between synchronous and asynchronous VFD?

The difference between synchronous and asynchronous VFDs lies in the type of power control equipments they are designed to control:


Synchronous VFDs: These are designed to control synchronous motors, which operate at a fixed speed that is determined by the frequency of the AC power supply. Synchronous motors are typically used in applications where precise speed control is required, such as in industrial processes, robotics, and precision machinery. Synchronous VFDs can maintain the synchronous speed of the motor even as the load changes, which makes them ideal for applications where precise speed control is critical.


Asynchronous VFDs: These are designed to control asynchronous motors, also known as induction motors, which operate at a speed slightly lower than the frequency of the AC power supply. Asynchronous motors are commonly used in applications such as fans, pumps, and conveyor belts, where precise speed control is not as critical. Asynchronous VFDs can adjust the speed of the motor by varying the frequency of the AC power supply, which makes them ideal for applications where energy efficiency and cost savings are important.


In summary, synchronous VFDs are designed for precise speed control of synchronous motors, while asynchronous VFDs are designed for adjustable speed control of asynchronous motors.
